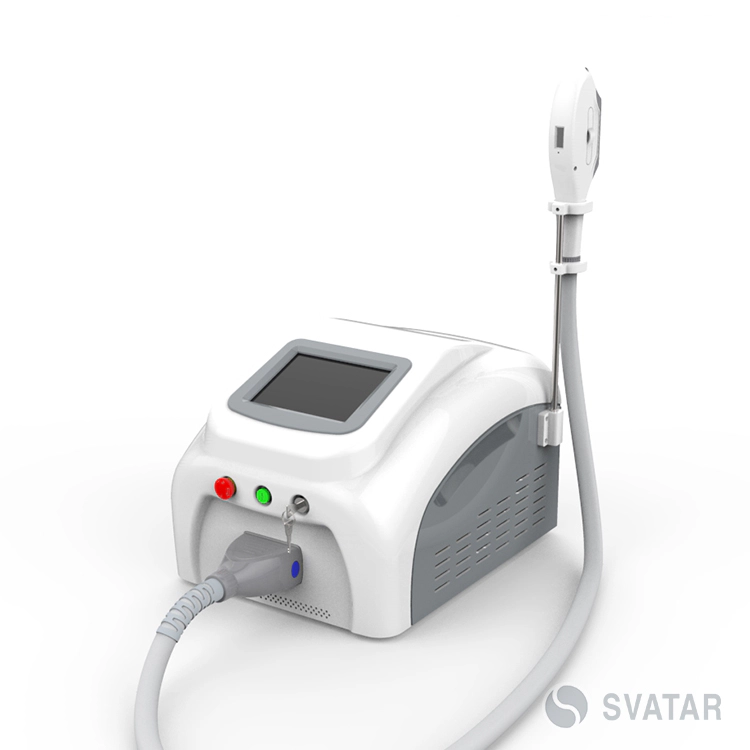

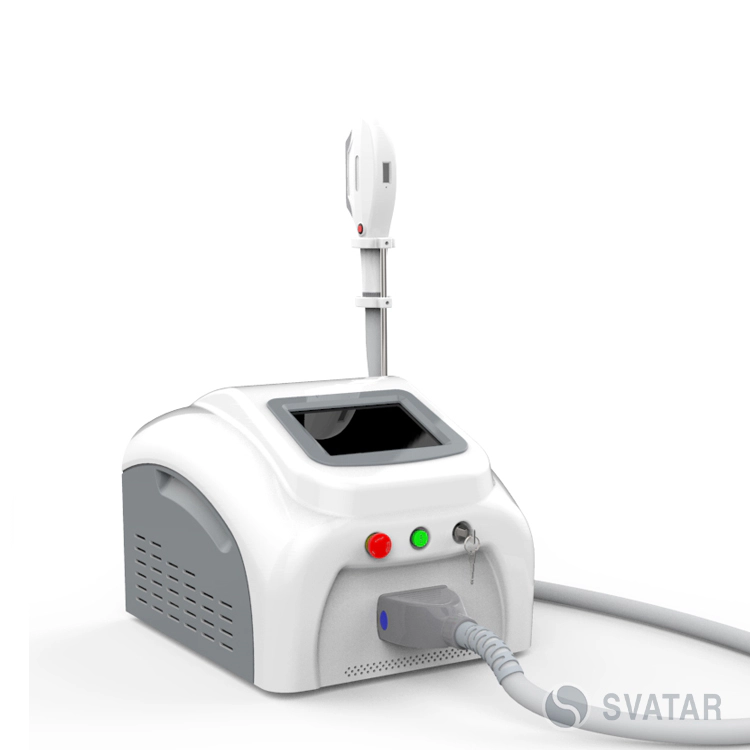

portable IPL skin rejuvenation machine TS-001

IPL hair removal & skin rejuvenation

Model NO.: TS-001
General Details

How Does It work?

IPL(Intense Pulsed Light) is a kind of photon therapeutic apparatus, also called IPL photo rejuvenation. It is widely used for skin rejuvenation, hair removal and pigmentation removal with the therapeutic mechanism of thermal selective effect. It is a kind of non-abrasive photodynamic therapy, making use of insignificant amount of intense pulsed light technology to conduct non-abrasive skin rejuvenation therapy with low energy and density, to achieve the purpose of rejuvenating and beautifying the skin.


1. Non-invasive and non-ablative treatment for skin.
2. Superior performance and patient comfort with no down time.
3. Virtually painless skin tightening technology without surgery.
4. High powered and fully adjustable pulse widths allow optimized results.
5. Simple control and suggested settings facilitates treatment for the novice or experienced user.
6. Integrated surface cooling makes treatment safe and comfortable for the patient.
7. Lightweight treatment head makes treatment comfortable for the operator.
8. Quick and easy installation.


1. Pain-free hair removal.
2. Skin tightening and rejuvenation.
3. Freckle, pigmentation removal.
4. Acne treatment.
6. Telangiectasias treatment.

Technical Info


Item NO. TS-001
Light Source Intense Pulsed Light
Lamp UK Lamp up to 100,000 shots
Wavelength 430nm,530nm,640nm/ 480nm,560nm,590nm,690nm
Transfer System Sapphire
Energy Density 0-50J/cm2
Spot Size 12×30 mm2/15×50 mm2
Pulse duration 1-20ms
Pulse delay 1-100ms
Discharge interval 1-4s
Pulse Number 1-6
Power 800 W
Control System 8 inches touch screen
Cooling System Contact cooling+Water circulation
Electrical AC 110V/60Hz, 230V/50Hz
Dimension 44cm×38cm×52cm
Packing Size 57cm×54cm×62cm
Net Weight 32 KG
