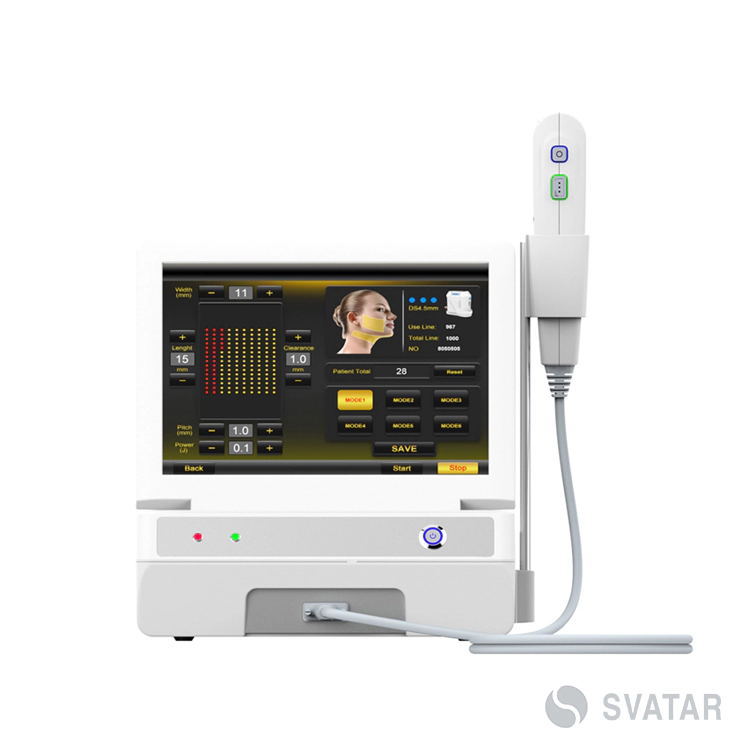

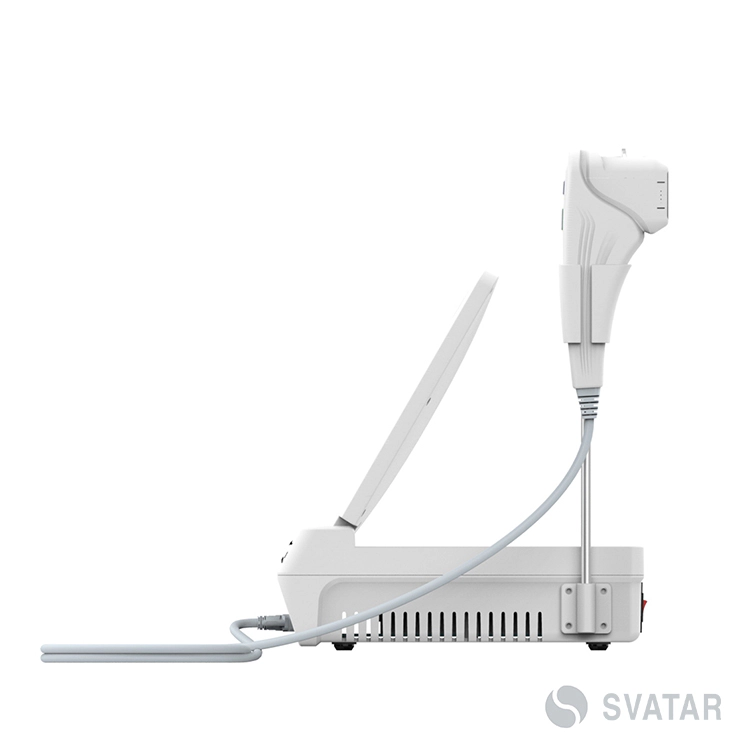

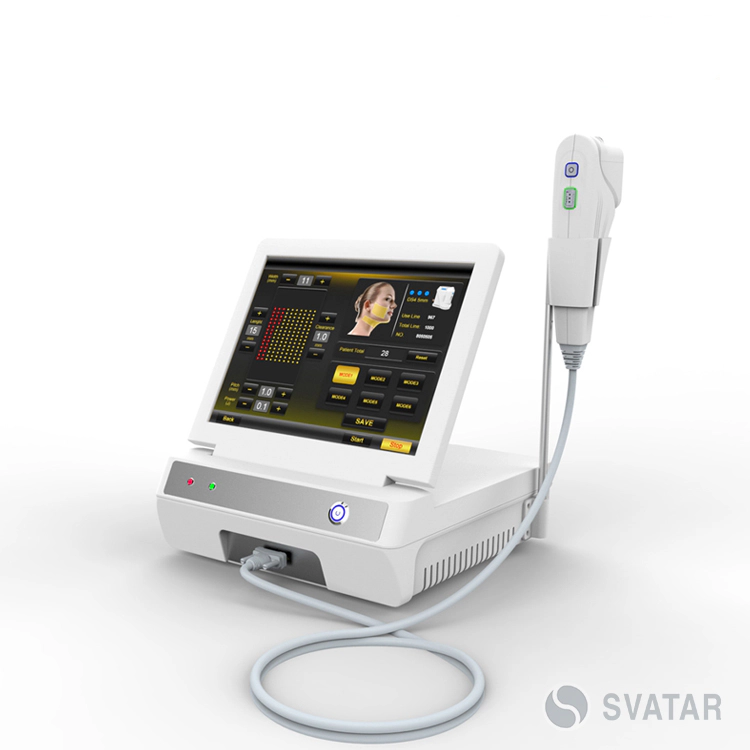

UMATRIX 4D HIFU skin lift U02

4D High Focused Ultrasound Skin lift

Model NO.: U02
General Details

How Does It work?

HIFU harnesses the power of ultrasound to non-invasive lift and tighten skin. Ultrasound is a form of mechanical energy that is significantly different from Light (Lasers) and Electrical (Radio-Frequency) energy. During HIFU treatment, ultrasound it is micro-focused below the skin’s surface to cause cellular friction and precise, pin-point heating. Similar to a magnifying glass focusing sunlight, heat is only generated at the focal point, leaving the skin’s surface and intervening tissue unaffected. Tissue at the focal point is heated to ~65°C, causing immediate collagen contraction and denaturation, and initiating aggressive collagen synthesis. Over 90-180 days, the wound-healing response stimulates long-term tissue remodeling and leads to further lifting and tightening, with results that can last a year or more.


–Skin Tightening and Rejuvenation
–Non-Invasive Lifting for Face
–Eyebrow Lifting
–Jowl Lifting
–Nasolabial Fold Reduction
–Double Chin Reduction
–Body shaping

Technical Info


Energy Source High Intensity Focused Ultrasound
Energy 0.1-2.0 J (0.1 step)

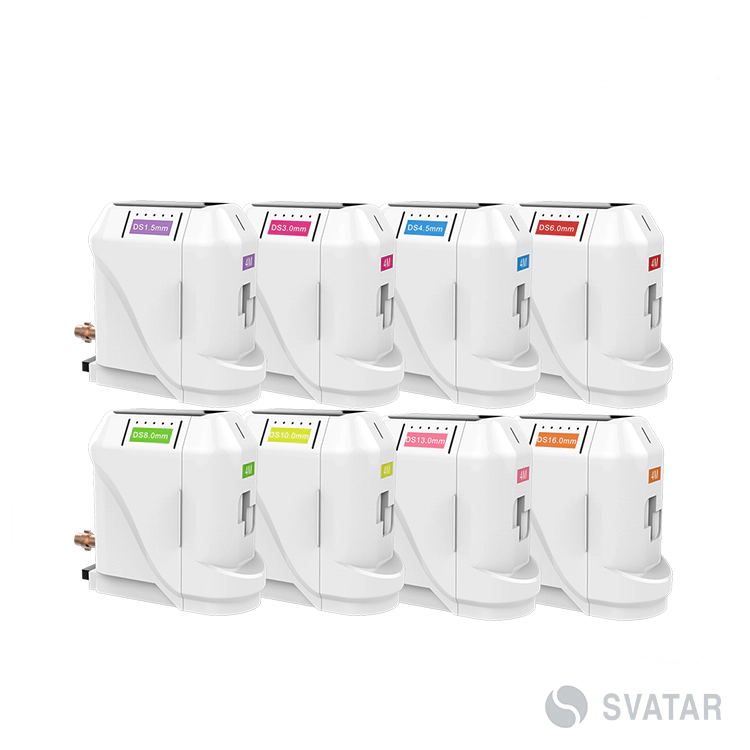

Cartridge(Tips) Standard: 3.0mm,4.5mm,8.0mm
Optional: 1.5mm, 6.0mm, 10.0mm, 13.0mm, 16.0mm
Shots 10,000 shot lines each cartridge
Line Distance 1.0-2.0mm (0.1mm step)
Length 5.0-25mm (1mm step)
Dot Pitch 1.0-2.0mm (0.1mm step)
Control 15 inches touch screen
Electrical 100-240Vac,50/60Hz
Weight 10 kgs

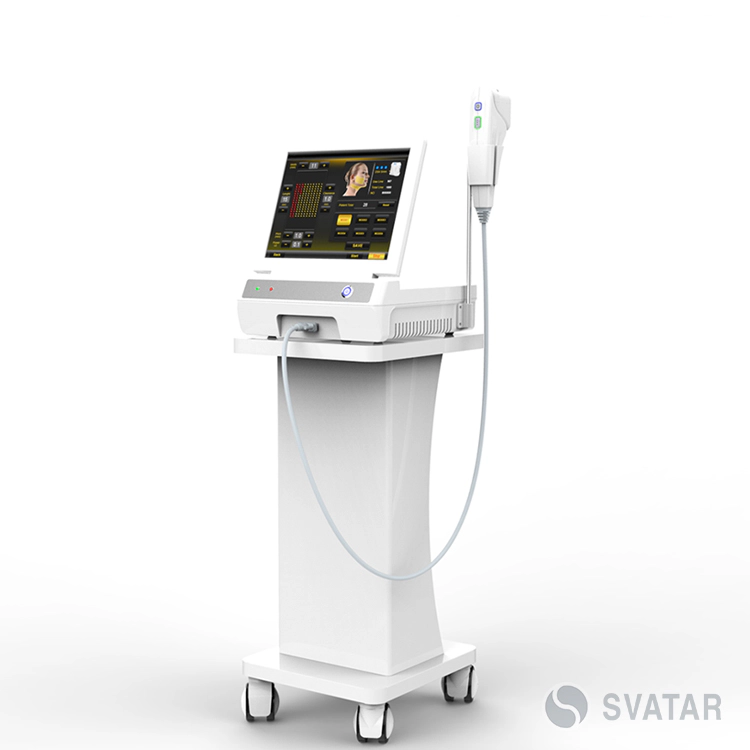

Cart Optional, 12 kgs
